Experiment of the Month

The Sound of Quality

The new science building has given us an interesting exercise in resonant vibrations. The wing that houses the physics offices and research labs also supports several tons of air conditioning equipment, about four meters above our heads. The flexible roof beam design responds to the natural vibrations of the three air conditioning units, both as a resonant object and as a vibration transmitter to other members.

figure

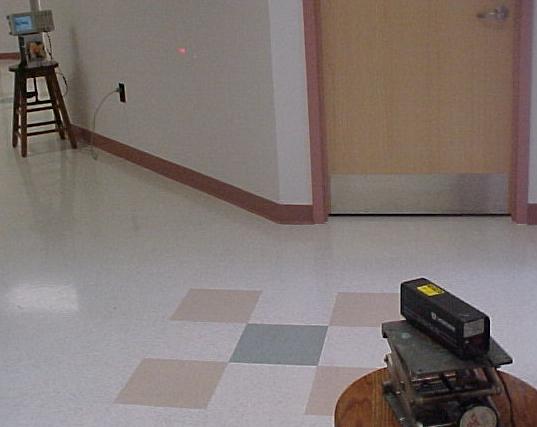

To quantify the qualitative observation that the acoustic ceiling panels were rattling in their tracks, and the floor "felt funny," we set up the system shown at the right. The laser shines on a detector which is about 2 meters distant. The detector measured a displacement of the concrete floor of about 0.1 millimeter (about the width of a mark on a ruler). The dominant frequency was approximately, but not exactly, 60 Hz.

Details of the detector, and its output are shown above. The detector is wired as two independent photodiodes; one on the top half and one on the bottom. The top is wired to oppose the bottom, so that if equal intensity falls on the bottom and top, the output voltage is zero. The micrometer at the lower left can move the detector up and down in a stationary beam, and is used for calibration: In the figure, one large oscilloscope division corresponds to a motion of about 0.1 millimeter.

Measurements were also made using accelerometers with a sensitivity of 10 mV per g and a good response in the audio frequency range. These were mounted in three places, as indicated in the figures below:

  1. On the main frame of the air conditioner unit. The mounting blocks for the accelerometer are epoxied to the frame
  2. On the support just below the vibration isolation system. (The spring associated with vibration isolation is seen in the figure.)
  3. On a window sill in the same hallway that gave the 0.1 mm floor vibration. In the figure, our technician, Shawn Reinfried, points to the mounting block which is epoxied to the window sill.

(The accelerometers were acquired by the physics department for a 1996 senior seminar project by Shawn Reinfried and Dr. Nolan, on the dynamics of golf clubs.)

Outdoor Measurements

The figures below show the vibration spectra recorded using the accelerometers and MultiPurpose Lab Interface software. The top left figure shows the vibration spectrum for the probe mounted on the frame of the unit itself (the upper probe mount block in the figure above). It shows strong 60 Hz vibration and other vibrations at 30 and 120 Hz. The middle and right figures show two vibration spectra taken about 1 minute apart, on the roof side of the vibration isolators (the lower probe mount block in the figure above). In addition to reduced vibration strength, the second two figures shows that the 60 Hz vibration appears (on the middle figure) and dissapears (on the right-most figure) as time goes by. This is consistant with casual observation of a "beat" in the noise heard inside the building.

Indoor Measurements

The dominant frequency in the 0.1mm concrete floor vibration was approximately 60 Hz, and showed a beat with period on the order of a minute, consistant with the audible beats. On the other hand, the window sill vibration spectrum is different from any other. It also shows a 60 Hz which comes and goes, but shows many more frequencies. These presumeably represent vibrations of other pieces of the building, driven by the vibrations of the main building support beams.

The problem with this simple explanation is to decide how it can work. If a resonant object rings for a long time after being excited, it is said to be a "high quality" resonator. This happens when the frictional forces are weak, and do work very slowly on the vibrating object. (The friction may be external or internal to the object.) If a resonator decays very slowly, it turns out to be difficult to excite it to vibrate as well. For a high quality resonator, the frequency of the driving force must match the resonator frequency almost exactly.

Frictional forces are said to "dampen" the vibrations, as a damp cloth will subdue a fire. The forces which cause vibrations to fade away are often called "damping" forces.

If there is any damping at all, theory and experiment show that eventually the driven resonator will vibrate at the same frequency as the driver. This does not seem to happen with the floor vibrations (presumeably coupled to the air conditioner units by the I-beams that support the building). We perceive a beat between two different frequencies, which makes the 60Hz vibation come and go about once per minute.

It has been suggested that the driver frequency (the vibrations from the air conditioner unit) is not constant, as the unit "hunts" to match its load. In that case the resonant vibrations of the I-beams would lag; "remembering" for a while the frequency with which they were driven in the past. These two different frequencies could then beat against each other to produce the observed beating vibrations in the building.

The wide range of observed natural frequencies in the window sill is similarly hard to understand. The members which resonate at all these different frequencies should be hard to drive from a 60 Hz source, but there they are. The quality of the resonators must be high enough to ring and give the observed signal, yet low enough to allow excitation by the (mostly) 60 Hz driving vibrations. Evidently the building resonant members have "goldilocks" quality - not too big and not too small.

Steps are being taken to reduce the vibrations. The picture at the right shows vibration isolation coils being added to the supports for the pipes carrying coolant to and from the air conditioner units.S
